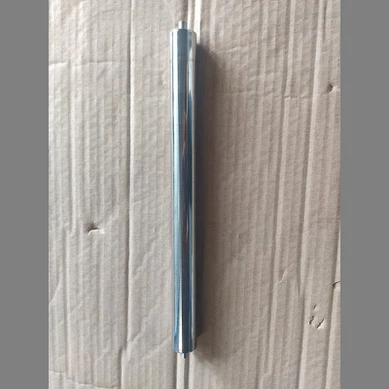

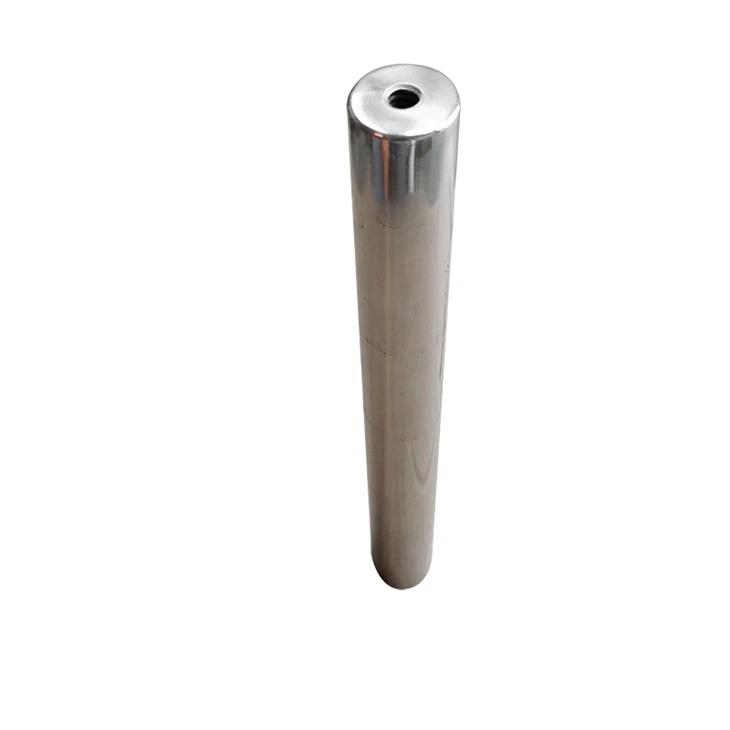

Tube Magnet
tube magnet
Tube magnet is a common magnetic element used to separate and filter fluids and particles containing iron, and can also be used in industries such as sanitation, food processing and chemical processing.
Tube magnets are usually divided into two types: permanent magnets and electromagnets. Permanent magnet Tube magnet is made of rare earth magnets and has the advantages of strong magnetic force, stability and long life. The electromagnetic Tube magnet requires an external power supply, the magnetic force is adjustable, and it is easy to maintain.
Tube magnet components are often made of corrosion-resistant materials such as stainless steel, so the equipment can be used for operation at various temperatures and pressures, and is not easy to rust or corrosion, which helps to keep the equipment clean and hygienic.
According to different application and use requirements, different specifications and models of Tube magnet can be selected. Generally, the diameter of Tube magnet is 25mm to 50mm, and the length is 100mm to 150mm. The magnetic density is 1000 to 12000 Gauss. Users can choose different sizes and magnetic forces according to their needs.
Divided according to particle status
|
Applications |
Surface Gauss |
|
Dry Powder |
7000-8000 Gauss |
|
Wet Slurry |
9000-10000 Gauss |
|
Nanometer Particles |
Over 12000 Gauss |
Divided by particle size
|
Absorbable to metals |
Surface Gauss |
|
>50 um iron filings |
1500Gs |
|
20-50um iron filings |
2500Gs |
|
Submicron iron filings, weak magnetic particles |
5000Gs |
|
Fine and weak magnetic particles, rust, etc. |
10000-20000Gs |
Xiamen Magnetic Clear Industry Co,.Ltd
A professional Magnetic Products Supplier
XiaMen Magnetic Clear Industry Co., Ltd. is located in Xiamen City, Fujian Province, Central South China，About 14 kilometers from Xiamen Gaoqi International Airport.
• 3 million USD/year turnover
• FLOOR AREAS3,00 M2
• EMPLOYEES12 Person
• MACHINE 8 Units

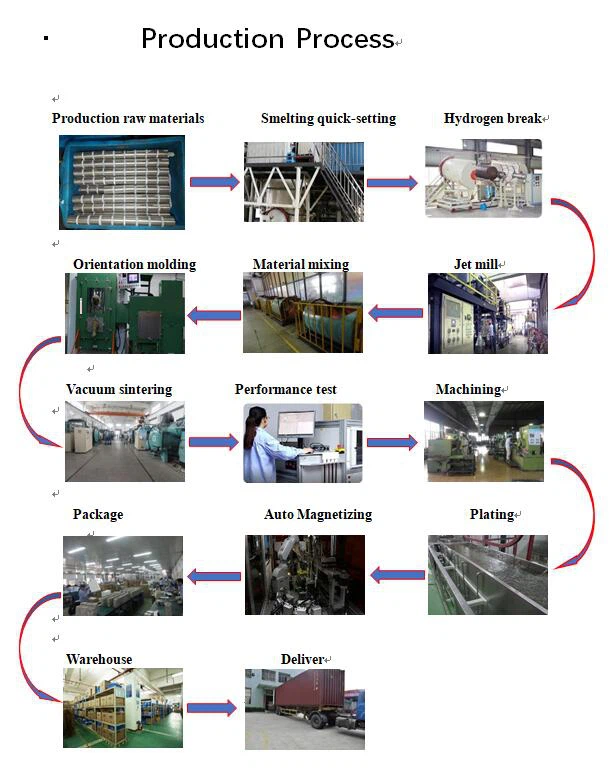

With many years of continuous growth and expansion, we have rich experience in various processing methods.
• Magnet cutting
• Magnet plating
• Magnetizing
• Assembly
• Cutting
• Welding
• Polished
• Cleaning
• Testing
• Package
